Infrared color sorters include color LED photo system and near infrared spectrum lighting system Color LED lighting system can choose different spectral illuminations according to different raw materials, to increase the contrast ratio of main features, in order to ensure the obtained material information is more precise.
The LED lighting system with heat dissipation has long service life, low energy consumptions and good performances. The near infrared spectrum lighting system adopted the Germany made and imported light source. The lighting is evenly bright and has a low energy consumption and a stable performance.
|
Model |
throughput
（Kg/h) |
Power(KW) |
Supply
voltage
|
Air
pressure
(MPa) |
Air
consumption
|
Size (mm) |
Weight (kg) |
| 6SXZ-63H4 | 200-800 |
0.95 |
220V/50Hz |
0.5-0.8 |
0.5~0.8 | 805*1490*1950 | 481 |
| 6SXZ-126H4 | 400-1600 |
1.75 |
220V/50Hz |
0.5-0.8 |
0.5~1.0 | 1120*1490*1950 | 627 |
| 6SXZ-189H4 | 600-2400 |
2.5 |
220V/50Hz |
0.5-0.8 |
0.8~1.5 | 1435*1490*1950 | 780 |
| 6SXZ-252H4 | 800-3200 |
3.5 |
220V/50Hz |
0.5-0.8 |
1.5~3.0 | 1750*1490*1950 | 940 |
| 6SXZ-378H4 | 1200-4800 |
4.5 |
220V/50Hz |
0.5-0.8 |
2.0~3.5 | 2375*1490*1950 | 1243 |
| 6SXZ-504H4 | 1600-6400 |
6.2 |
220V/50Hz |
0.5-0.8 |
3.0~4.5 | 3303*1490*1950 | 1580 |

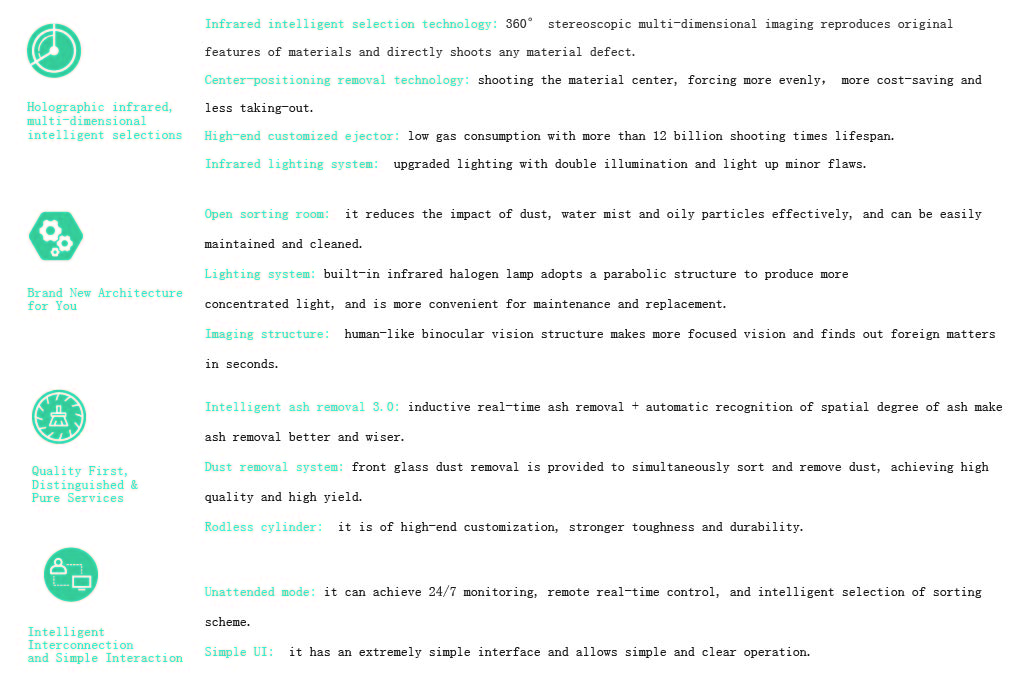

Product technical feature
